Metal Seat Gate Valve

Metal Seat Gate Valve

Clover's high strength metal seat gate valve is suitable for above and below ground potable, non potable and wastewater applications.

Our range of metal seat gate valves are manufactured to AS 2638.1 for use in above and below water supply and sewerage applications.

View partnership page

  • High strength and impact resistant ductile iron body.

  • Thermally bonded polymeric coating for long life corrosion protection.

  • Cast in foot design for stability and safe and easy storage with fixed lifting devices for simple installation.

  • Available in both clockwise close (CC) and anti-clockwise close (ACC) configurations.

Overview

Our range of metal seat gate valves are cast in foot design for stability and safe and easy storage with fixed lifting devices for simple installation.

They are available in both clockwise close (CC) and anti-clockwise close (ACC) configurations.

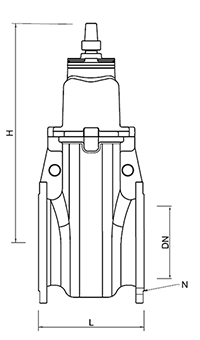

Properties, dimensions and standards

  • Size Range: DN80 – DN1000.
  • Allowable Operating Pressure: 1600kPa & 3500kPa.
  • Maximum Temperature: 40 C.
  • Connections: Flange AS4087 & AS2129 (Others on request).
  • Compliance: AS 2638.1, AS/NZS4020 and AS/NZS4158.

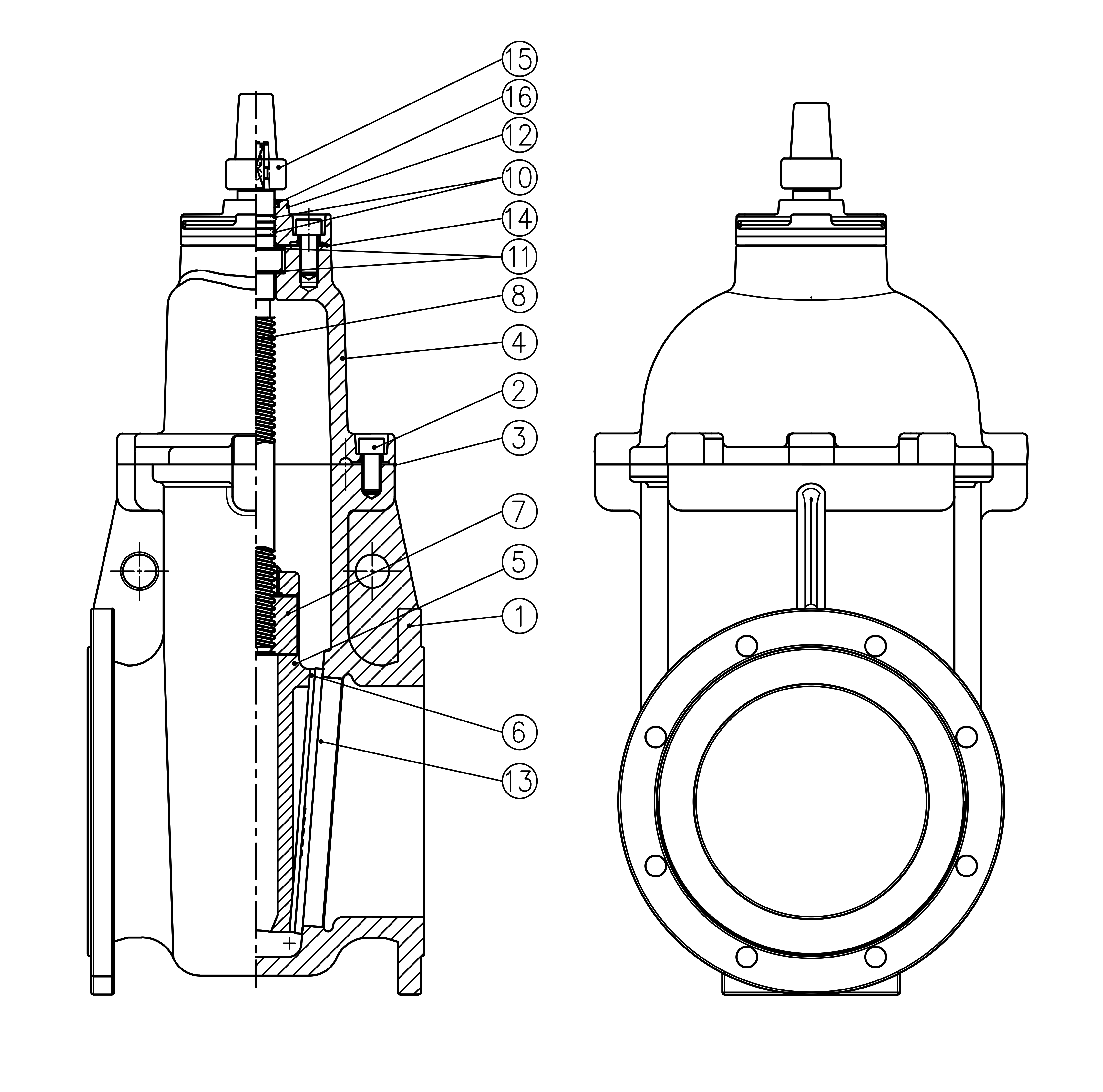

Item Part Name Material
1 Body Ductile iron Fusion coat AS4158
2 Bolts PN16 – 316 Stainless Steel
PN35 -431 Stainless Steel
3 Body Gasket EPDM AS1646
4 Cover Ductile iron Fusion coat AS4158
5 Gate Gunmetal (DN80-300)
Ductile iron Coated (DN375+)
6 Gate Rings Gunmetal (DN375-1000)
7 Stem Nut DR Brass
8 Spindle PN16 – 316 Stainless Steel
PN35 – HT Carbon Steel Gal
9 Seal Kit EPDM AS1646
10 O Ring NBR
11 Thrust Washer Ertalyte
12 Seal Retainer 316 Stainless Steel (DN80-200)
Ductile iron with Gunmetal Sleeve or 316 Stainless Steel (DN225+)
13 Body Rings Gunmetal
14 Gland Gasket EPDM AS1646
15 Key Cap Ductile iron
16 Wiper Seal NBR
