Clover Resilient Seat Double Flange Integral Bypass Gate Valves PN16 are suitable for use in pressure and non-pressure water supply and sewerage applications.

Gate valves are used to isolate flow within pipeline sections, pipeline equipment and offtakes. Clover Resilient Seat Gate Valves are manufactured in accordance with AS/NZS2638.2.

  • Compact design reduces overall footprint for installation

  • Manufactured & certified to AS/NZS2638.2

  • Confidence of the highest quality valves, backed by a 10-year manufacturer’s warranty

Techincal Information

Usage & Features

Applications

Clover resilient seat double flange integral bypass gate valves PN16 are suitable for use in pressure and non-pressure water supply and sewerage applications. Gate valves are used to isolate flow within pipeline sections, pipeline equipment and offtakes.

Typical applications include;

  • Potable and recycled water supply
  • Irrigation and raw water
  • Gravity and sewer rising mains
  • Fire systems
  • Stormwater and drainage
  • Buried and above ground

Gate valves should not be used for the purposes of throttling or adjusting flow.

Features and Benefits

Features Benefits
Integral bypass design Reduces risk to the pipeline during filling operation
Reduced footprint Integral bypass design reduces the overall footprint required for installation
10-year manufacturers’ warranty Confidence of the highest quality valves, backed by a 10-year manufacturer’s warranty.
Factory tested Each gate valve undergoes hydrostatic pressure and operating torque testing
Reduced weight design Safer and easier installation
Reduced operating torque Bypass valve provides downstream pressure equalisation reducing the torque required to operate the valve
Full bore design Eliminates debris build up
Local inventory available Fast and flexible supply to meet project demands
Manufactured & certified to AS/NZS2638.2 Guaranteed quality products
Thermally bonded polymeric coating Long-term corrosion resistance and performance
Accreditations

Compliance

  • AS/NZS2638.2 “Gate valves for waterworks purposes – Resilient seated”
  • AS/NZS4158 “Thermal-bonded polymeric coatings on valves and fittings for water industry purposes”
  • AS1646 “Elastomeric seals for waterworks purposes”
  • AS1831 “Ductile cast iron”
  • AS/NZS4087 “Metallic flanges for waterworks purposes”
  • AS2129 “Flanges for pipes, valves and fittings”
  • AS/NZS4020 “Testing of products for use in contact with drinking water”
  • ISO5211 “Industrial Valves – Part-turn actuator attachments”

Product Certification

Clover resilient seat double flange integral bypass gate valves are manufactured and independently third party certified to AS/NZS2638.2 “Gate valves for waterworks purposes – Resilient seated”.

Accreditation body: Australian Certification Services – 25731

WSAA Product Appraisal

Clover resilient seat double flange integral bypass gate valves are independently appraised and recommended by the Water Services Association of Australia (WSAA);

  • Product Appraisal 11/21

WSAA Purchase Specification

Clover resilient seat double flange integral bypass gate valves comply with the requirements of the following Water Services Association of Australia (WSAA) purchase specification(s);

  • WSA PS260 – Gate Valves, Resilient Seated for Pressure Applications – Water Supply and Sewerage

Suitability for Use with Potable Water (AS/NZS4020 Compliance)

Clover resilient seat double flange integral bypass gate valves are suitable for potable water applications and comply with the requirements of AS/NZS4020 “Testing of products for use in contact with drinking water”.

Product Details

Diameter Range

Clover resilient seat double flange integral bypass gate valves are manufactured with nominal diameters ranging from DN375 to DN600.

For gate valves with larger diameters please contact Clover for additional technical and pricing information.

Pressure

Clover resilient seat double flange integral bypass gate valves are manufactured with a standard nominal pressure range of PN16 (1,600kPa).

Coating

Clover resilient seat double flange integral bypass gate valves s are manufactured with a thermally bonded polymeric coating using a fluidised bed process in accordance with the requirements of AS/NZS 4158 “Thermal-bonded polymeric coatings on valves and fittings for water industry purposes”.

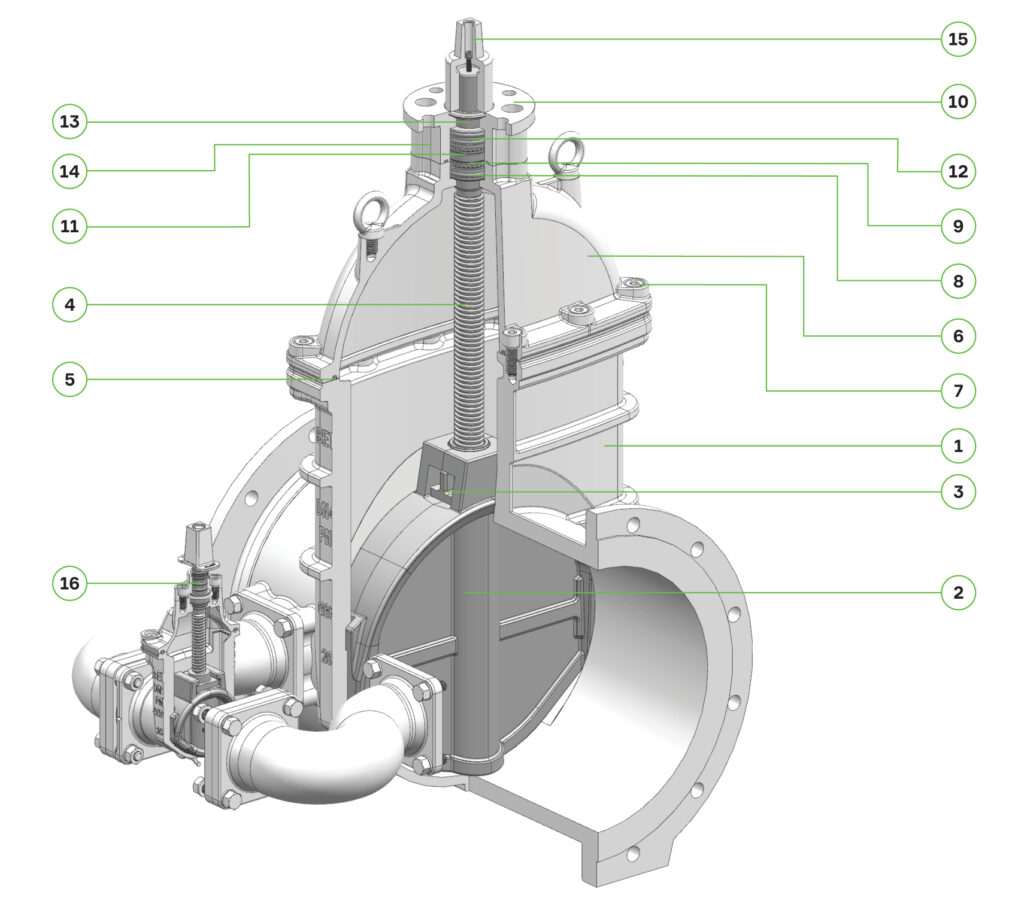

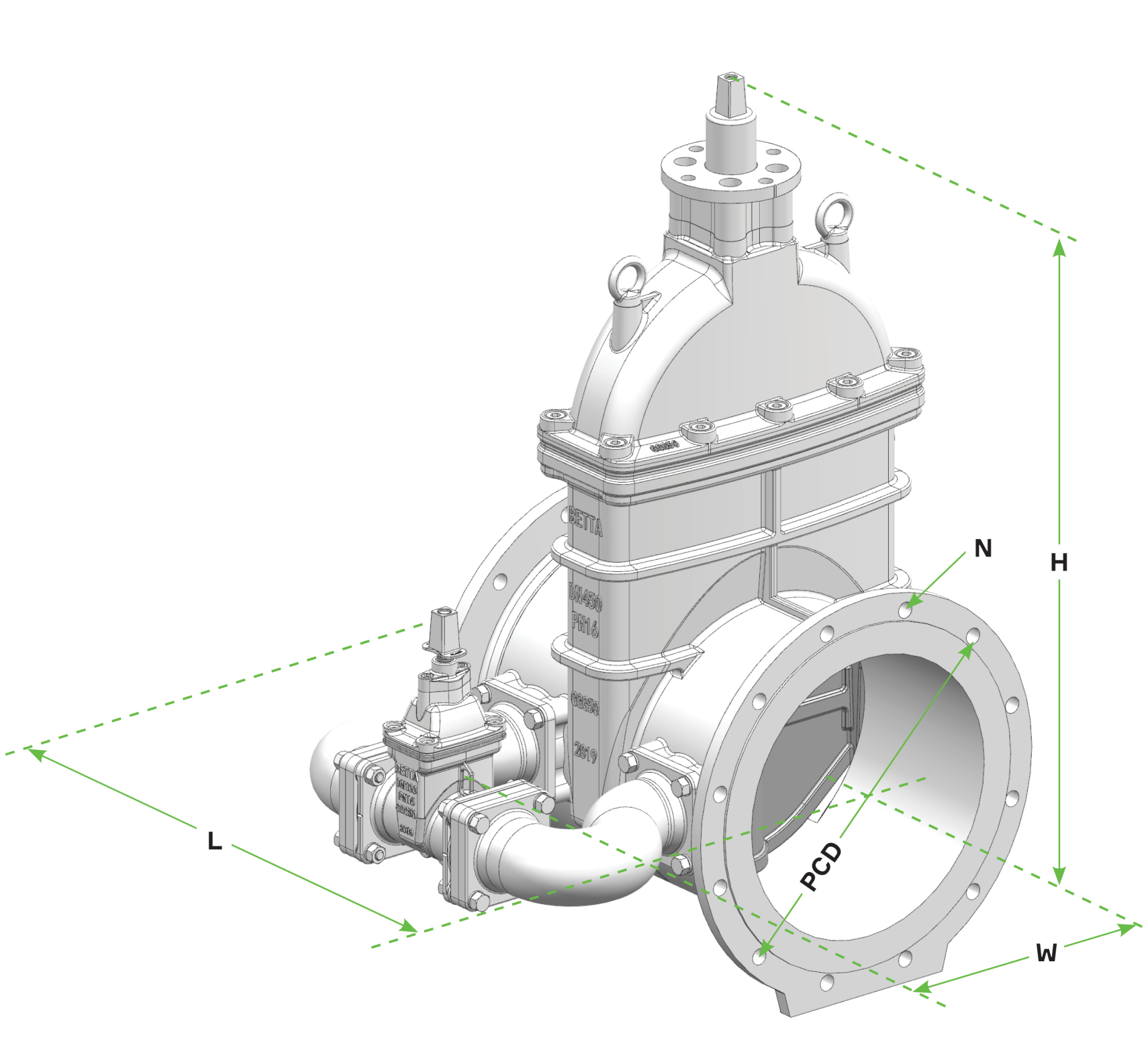

Resilient Seat DF IB PN16-SPEC

Specifications Sym Units DN 375 DN 450 DN 600
Length (Face To Face) L mm 610 650 785
Height (Centre To Keycap) H mm 935 1080 1345
Width (Centre To Centre) W mm 516 555 835
Flange Bolt Holes N mm 12ø26 12ø26 16ø30
Pitch Circle Diameter PCD mm 495 584 756
Weight Of Unit (Keycap Fitted) kg 275 565 830
Turns To Close (Approx) Turns 55 58 68
Actual Torque To Seal (Approx) Nm 310 400 500
Maximum Operating Torque MOT Nm 500 600 800
ISO5211 Top Mounting Flange F14/F16 F16 F16
Bypass Diameter DN mm 100 100 150
Product Code Anti (Clockwise Close) VGFFB375 VGFFB450 VGFFB600
Product Code (Clockwise Close) VGFFB375C VGFFB450C VGFFB600C

End Connections

Clover resilient seat double flange integral bypass gate valves are manufactured with flanged connections in accordance with AS/NZS4087 Fig. B5.

Pressure

Nominal Pressure (PN) Allowable Operating Pressure (AOP) Maximum Allowable Operating Pressure (MAOP) Allowable Site Test Pressure (ASTP) Production Test – Body Production Test – Seat
16 1,600 kPa 1,920 kPa 2,000 kPa 2,400 kPa 1,760 kPa

Maximum Operating Temperature

40°

Options & Accessories

Clover resilient seat double flange integral bypass gate valves have a range of options and accessories available including:

  • Anti-clockwise and clockwise closing models available
  • Handwheel
  • Gearbox Operator (Spur & Bevel)
  • ISO5211 Top Mounting Flange
  • Anchor Legs and Valve Restraint Straps
  • Lilac coloured key-cap available for recycled water applications
  • Alternate flange drillings available upon request

Contact Clover for further information.

Properties

Mechanical Properties – Ductile Iron

Property Value & Unit
Ultimate tensile strength (Minimum) 500MPa
Elongation (Minimum) 7%
Density (Specific Gravity) 7.1

Mechanical Properties - Coating

Property Value & Unit
Internal Surface (in contact with drinking water) 350 Microns
External Surface 300 Microns
Design & Install

Installation, Operation & Maintenance

Installation Training

Clover’s in-house engineering team provides a range of training, accreditation and technical support services.

The Clover Academy installation training course provides installers with important information relating to the correct handling, installation, testing, maintenance and repair of Clover pipe systems and products.

Contact the Clover engineering team to discuss scheduling a training program.

Technical Support

Clover’s in-house engineering team combines specialist technical knowledge, creative thinking and on-the-job experience, to offer our clients a range of project planning and consultation services.

From recommendations on product innovations, to crafting complex end-to-end solutions, our collaborative approach bridges the gap between contractors, authorities and suppliers. The only Australian provider able to offer clients the full product suite, Clover offers unbiased, strategic insights that always consider the bigger picture.

From initial planning, to onsite training and technical assistance, we offer input across every stage of your project’s timeline. Our contribution continues beyond the project design, and we remain accessible for ongoing changes and developments over the course of each project.

We work with contractors, asset managers, local councils and government, developers and other pipeline professionals to specify bespoke product solutions. By engaging our team of engineers, you gain access to unparalleled product knowledge and expertise.

Recommended Specifications

  • Gate valves shall be Clover resilient seated non-rising spindle type with integral bypass conforming to AS2638.2
  • Gate valves shall close in an anti-clockwise / clockwise direction
  • Gate valves shall be fitted with a keycap / handwheel
  • Gate valve allowable operating pressure shall be 1,600kPa
  • Protective coatings of gate valves shall be thermally applied polymeric type in accordance with AS/NZS4158
  • Flanges shall be raised face type in accordance with AS/NZS4087 Fig. B5
Resources

Technical Documents

Resilient Seat Gate Valve Double Flange Integral Bypass PN16 – Technical Data Sheet

PDF, 258.9K

Gate Valve – WSAA Appraisal

PDF, 1.9M

Flange Assembly Installation Guide

PDF, 620.1K
