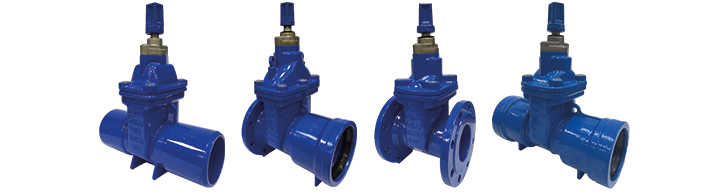

Resilient Seat Gate Valve

Overview

Suitable for above and below ground potable, non potable and wastewater applications.

Clover resilient seated gate valves comply with AS 2638.2 for use in applications across water supply and sewerage.

Key Features

  • High strength and impact resistant body manufactured from ductile iron and EPDM encapsulated gate. Full bore design eliminates potential debris build up.
  • High strength 431 Stainless steel spindle provides excellent corrosion resistance.
  • Thermally bonded polymeric coating for long life corrosion protection.
  • Cast in foot design for stability and safe and easy storage with fixed lifting devices for simple installation.
  • Isolated stainless steel fasteners for corrosion protection.

Technical Data

Size Range: DN50 – DN750

Allowable Operating Pressure: 1600kPa

Maximum Temperature: 40 C

Connections: Socket, Spigot and Flange AS4087 & AS2129

Certifications: AS 2638.2, AS/NZS 4020

Product License: OMK25731

WSAA Appraisal: PA11/21

Components

ItemPart NameMaterial
1BodyDuctile iron AS1831 Fusion coat AS4158
2GateDuctile iron AS1831 EPDM Encapsulated
3Stem NutAluminium Bronze C95210
4SpindleSS ASTM A276
5Body GasketEPDM AS1646
6BonnetDuctile iron AS1831 Fusion coat AS4158
7Body BoltSS ASTM A276
8Thrust WasherPOM
9Thrust CollarDN50-300 POM.  DN375+ Alum. Bronze C95210
10Bonnet BoltSS ASTM A276
11O RingNBR AS1646
12Seal KitEPDM AS1646
13Dust CoverEPDM AS1646
14Seal RetainerDuctile iron AS1831 Fusion coat AS4158
15Key CapDuctile iron AS1831
16Pipe SealEPDM AS1646

Flange PN16

DNLHNPCDTurnsKgACCCC
50*1782604X181141312VGFF050VGFF050C
65*1902704X181271715VGFF065VGFF065C
802033104X181462119VGFF080VGFF080C
1002293404X181782124VGFF100VGFF100C
1502674508×182353245VGFF150VGFF150C
2002925808X182923568VGFF200VGFF200C
2253056708X183244390VGFF225VGFF225C
2503306708X223564395VGFF250VGFF250C
30035678012X2240644140VGFF300VGFF300C
37538188512X2649555235VGFF375VGFF375C
450432110012X2658458395VGFF450VGFF450C
500457120016X2664164510VGFF500VGFF500C
600508136516X3075668780VGFF600VGFF600C
750610172020X339274751350VGFF750VGFF750C



Flanges to AS4087 Fig B5 PN16.
*AS2129 Table E
Gearbox
Optional AS2129 Table E flanges also available.

Socket PN16

DNLHODL1TurnsKgACCCC
1004103401221352124VGSS100VGSS100C
1504634501771503246VGSS150VGSS150C
2005565802321703571VGSS200VGSS200C
2254776702591354386VGSS225VGSS225C
2504826702861444392VGSS250VGSS250C
30052078034514644138VGSS300VGSS300C
37560098542617255240VGSS375VGSS375C



Sockets suit AS/NZS 2280 Series 1 & 2 seals.

Spigot PN16

DNLHODTurnsKgACCCC
1003453401222123VGPP100VGPP100C
1503654501773245VGPP150VGPP150C



Spigots to AS/NZS 2280 Series 2 dimensions.

Socket Flange PN16

DNLHNPCDODTurnsKgACCCC
1003203404X181141222124VGSF100VGSF100C
1503654508X181271773246VGSF150VGSF150C



Sockets suit AS/NZS 2280 Series 1 & 2 seals. Flange to AS4087 Fig B5.

Flange PN25

DNLHNPCDTurnsKgACCCC
802032258X181652123VGFF080F25VGFF080F25C
1002293408X181912130VGFF100F25VGFF100F25C
15026745012X222603252VGFF150F25VGFF150F25C



Flanges to AS4087 Fig B7 PN25.

All dimensions are quoted in millimetres.
Hand wheels, gearboxes, actuation, keys and spindle extensions available for all valves.
Contact Clover for information on additional sizes not shown on this data sheet.
