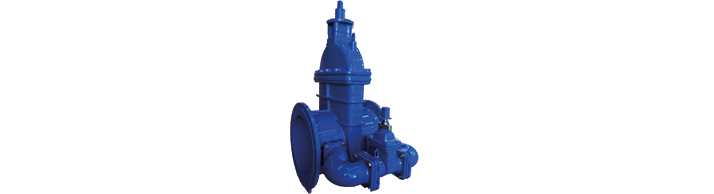

Integral Bypass Gate Valve

Integral Bypass Gate Valve

Overview

Clover’s resilient seated integral bypass gate valves comply with AS2638.2 for pipeline isolation use in above and below ground pressure water supply and sewerage applications.

Bypass valves are used during the pipeline filling process to reduce the risk of damage to components and to equalize downstream pressure and reducing operating torque.

Key Features

  • High strength and impact resistant body manufactured from ductile iron and EPDM encapsulated gate.
  • Full bore design eliminates any potential debris build up.
  • Integral bypass valves provide a compact footprint and faster installation reducing installation costs.
  • Thermally bonded polymeric coating for long life corrosion protection.

Technical Data

Size Range: DN375x100, DN450x100 & DN600x150

Allowable Operating Pressure: 1600kPa

Maximum Temperature: 40 C

Connections: AS4087 Fig. B5 Flange (Others on request)

Mounting Flange: ISO5211 gearbox and/or actuation mounting

Certifications: AS 2638.2 & AS/NZS 4020

Product License: OMK25731

WSAA Appraisal: PA11/21

Components

ItemPart NameMaterial
1BodyDuctile Iron AS1831 Fusion Coat AS4158
2GateDuctile Iron AS1831 EPDM Encapsulated
3Stem NutAluminium Bronze C95210
4SpindleSS ASTM A276
5Body GasketEPDM AS1646
6BonnetDuctile Iron AS1831 Fusion Coat AS4158
7Body BoltSS ASTM A276
8O’RingNBR AS1646
9Thrust CollarDZR C48600 AS1568
10Bonnet BoltSS ASTM A276
11Thrust CollarDZR C48600 AS1568
12O’RingNBR AS1646
13Seal RetainerDuctile Iron AS1831 Fusion Coat AS4158
14Dustproof CoverEPDM AS1646
15Key CapDuctile Iron AS1831
16Bypass ValveAccording to AS2638.2
17Nut & WasherSS ASTM A276
18BoltsSS ASTM A276
19ElbowDuctile Iron AS1831
20EyeboltGalvanised Carbon Steel

Specifications

DNBypassHLL2NPCDTurnsKgACCCC
37510093561051612×2649555275VGFFB375VGFFB375C
450100108065055512×2658458565VGFFB450VGFFB450C
600150134578583516×3075668830VGFFB600VGFFB600C



All dimensions are quoted in millimetres.

Valve and bypass valve are supplied with standard key cap fitted.

Hand wheels, gearboxes, actuation, keys and spindle extensions available for all valves.

Contact Clover for information on additional sizes not shown on this data sheets.
