PE Pipe & Fittings

Overview

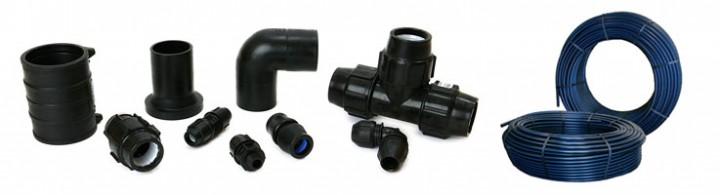

PE pipe and fittings offer durable and flexible solutions for a wide range of applications. Polyethylene piping is resistant to corrosion in all ground conditions and its flexibility allows it to withstand ground movements. No protective layers or finishes are required.

Polyethylene pipe systems can be fusion or butt welded, so there is no risk of leaking as a result of joint distortion. Conveniently available in coils and long lengths, PE pipe is a common choice for trenchless and pipe bursting applications.

PE fittings complete the poly-package, using electrofusion and butt welding technology for jointing.

Key Features

  • Size Range DN16 to DN1600
  • Pressure Range PN10 and PN16
  • Free from corrosion
  • No protective layers or finishes required
  • Can use in Trenchless Technology
  • Can be fusion welded

Properties, Dimensions, & Standards

Polyethylene Pipe (PE Pipe)

For use in potable, non-potable water and sewer systems.

  • Size Range: DN16 – DN1600
  • Pressure Range: PN4 – PN25
  • Lengths: 6m, 12m & 20m Lengths in all sizes
  • Coils: 25m – 200m Coils up to DN140
  • Colours: Black, Blue, Lilac, Cream, Yellow, White & Orange
  • Standard: AS/NZS4130

PE Electrofusion and Butt Weld Fittings

For use in potable, non-potable water and sewer systems.

  • Size Range: DN20 – DN1600
  • Pressure Range: PN10 – PN25
  • Product Range: Electrofusion Fittings
  • Short Spigot Fittings for Butt Welding
  • Long Spigot Fittings for Butt Welding & Electrofusion
  • Standard: AS/NZS4129

PE Fabricated Fittings and Equipment

For use in potable, non-potable water and sewer systems.

  • Size Range: DN20-DN1200
  • Pressure Range: PN4 – PN25
  • Process: Butt Welding and Electrofusion as required
  • Materials: Fabricated from PE pipe & moulded spigot fittings
  • Equipment: Welders, Scrapers, Rounding Tools & Clamps
  • Features: Can be customised to meet your needs
  • Standard: Materials comply with AS/NZS4129 & AS/NZS4130

Product Sizing Table

Polyethylene Pipe PE100
PN46.381012.51620
SDR4126211713.6119
DNMean ID (mm)
1612.812.4
2016.816.415.6
2521.821.320.519.4
3228.828.227.326.224.9
4036.235.334.132.731.1
5045.244.142.640.938.9
6359.257.055.653.751.549.0
7570.567.966.264.061.458.3
9084.581.479.476.873.670.0
110104.6103.399.597.193.890.085.6
125118.9117.4113.1110.3106.6102.397.2
140133.2131.5126.7123.5119.4114.5108.9
160152.2150.3144.8141.2136.5130.9124.4
180171.2169.1162.9158.8153.5147.3140.0
200190.2187.9181.0176.5170.6163.6155.6
225214.0211.4203.6198.5191.9184.1175.0
250237.8234.8226.2220.6213.2204.5194.4
280266.3263.0253.3247.1238.8229.1217.8
315299.6295.9285.0277.9268.7257.7245.0
355337.7333.5321.2313.2302.8290.5276.1
400380.5375.8361.9352.9341.2327.3311.1
450428.0422.7407.1397.1383.8368.2350.0
500475.6469.7452.4441.2426.5409.1388.9
560532.7526.1506.7494.1477.6458.2435.6
630599.3591.8570.0555.9537.4515.5490.0
710675.4667.0642.4626.5605.6580.9552.2
800761.0751.5723.8705.9682.4654.5622.2
Nominal diameter (DN) equals outside diameter
Contact your local Clover sales office for details on DN900 to DN2000 pipe diameters
